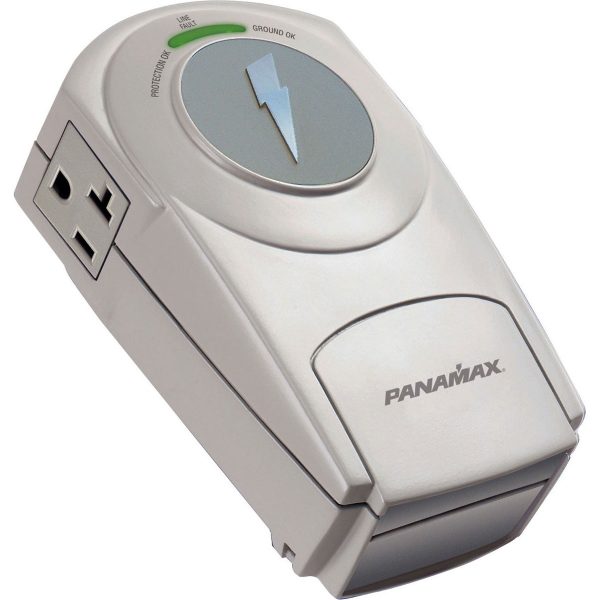

M2A20

2 Outlet Direct Plug-In Surge Protector 20 AMP

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Description

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Signal Perfect™ Circuitry

Optimized phone line surge protection circuitry ensures a clean, clear signal. It features solid-state SIDACtor® and autor-resetting PTCR’s for maximum protection and reliability.

$5,000,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $5,000,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.

Product Upgrade Offer

See policy for details on upgrade offer to replace damaged units.

Features

  • Two 20 Amp AC Outlets
  • Protect-or-Disconnect™ Circuitry
  • Convenient security feature; attach the protector to your equipment’s power cords.
  • Three diagnostic lights indicate wiring integrity and protection status.
  • Space-saving design plugs directly into wall outlet.
  • Convenient security feature; attach the protector to your equipment’s power cords.

  • Versatile outlet orientation accommodates the widest range of plug styles including transformers and right angle plugs.

Specifications

AC Power

UL 1449 Suppression Rating 330V
Thermal Fusing Yes
Single Pulse Energy Dissipation 1350 Joules
Response Time <1 ns
Protection Modes L-N, L-G, N-G
Protect or Disconnect™ Circuitry Yes
Peak Impulse Current 52,000 A
Maximum Current Rating 20A (2400 W)

Line Voltage 120 VAC, 50/60 Hz
Initial Clamping Level 200V
EMI/RFI Noise Filtration 50 dB (100 kHz – 1 MHz)
Catastrophic Surge Circuit Yes



General

Weight .75 lb.
Dimensions 3.12 in. W X 5.5 in. D X 2 in. H



Agency Approvals & Warranty

UL® 1449 Rating 330V
Product Warranty Lifetime
Lightning Protection Yes
Connected Equipment Protection Policy Up to $5,000,000

Other Specifications

  • FamilyDirect Plug Ins
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet DescriptionsTwo 20 Amp AC Outlets, both filtered and surge protected
  • ComplianceC-UL (UL standard #1449)
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Dimensions3.12″ W X 5.5″ D X 2″ H
  • Weight0.75 lbs
General
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating20 (Amps)
  • Initial Clamping Level200V Peak
AC Protection
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 kHz – 1 MHz
  • Signal Line ProtectionNo
Filtration
  • Length4.6 (Inches)
  • Width3.2 (Inches)
  • Height6.2 (Inches)
  • Weight0.75 (Lbs)
  • Unit of MeasureEach
  • UPC050616006590
  • Master Pack Qty24
Shipping Info

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

Please call 1.800.472.5555 to talk to Customer Relations about full warranty details and restrictions

Lifetime Product Warranty

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
