M8-AV

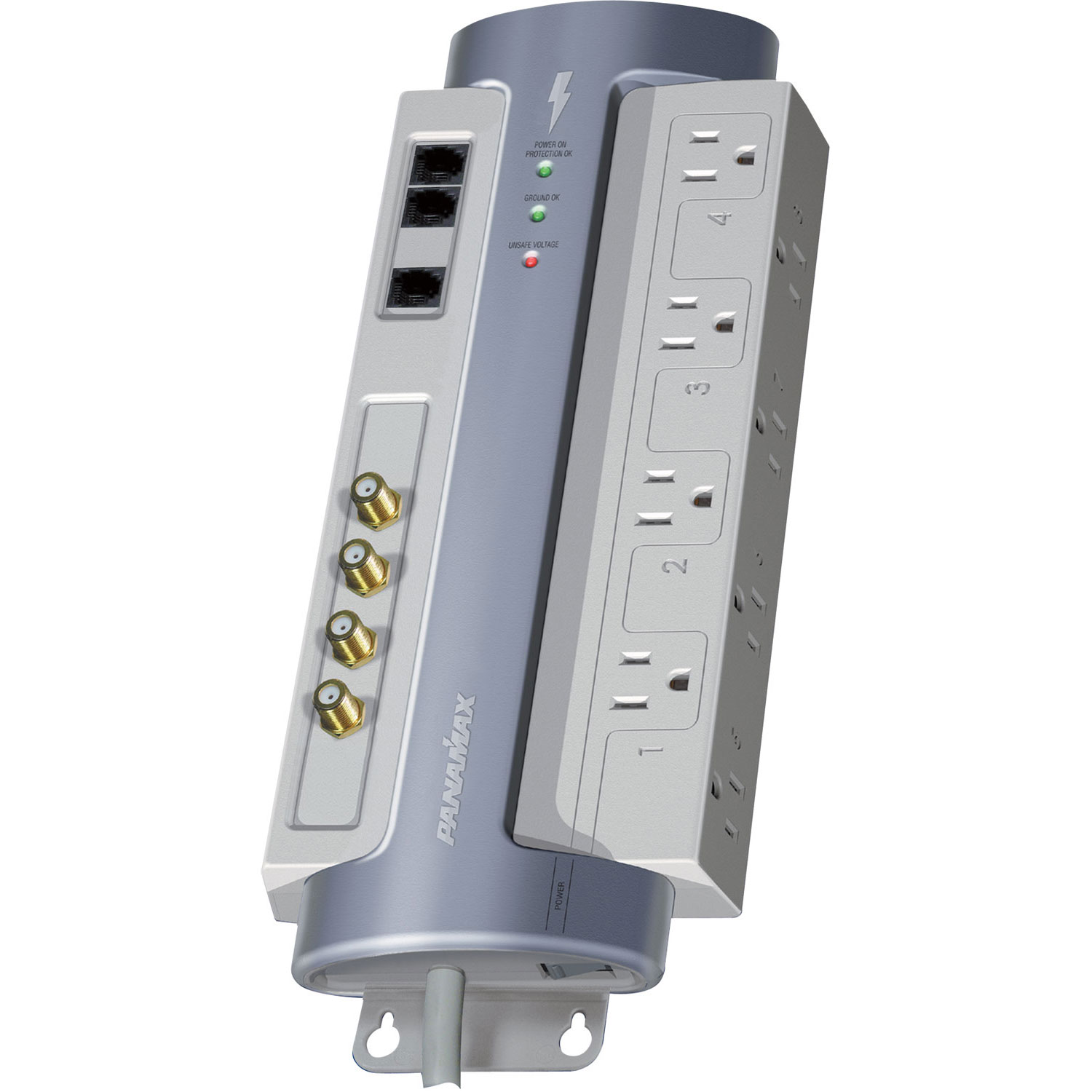

M8-AV Power Conditioner

M8-AV eliminates voltage irregularities & protects your AV system.

Description

Home Theater Power Management

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV eliminates voltage irregularities & protects your AV system.

Surge Protection

Panamax’s patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnecte dwhen voltage returns to a safe level, eliminating service calls or system downtime.

Improves Picture & Sound Quality

The M8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

(Panamax Max 8 AV – 8 AC; Coax and Tel; AVM, Line Filtration)

Features

Cable/Sat Protection

Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Telephone Line Protection

Protects equipment from electrical surges that travel over telephone lines.

AVM

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

8 Outlets

Eight (8) filtered and surge protected outlets for all of your power needs.

Hi Def Ready

Hi-Def Designed to work with your High Definition system.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes
Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 0MHz – 2.2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes

Other Specifications

General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet DescriptionsAll 8 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord6 ft. captive cord
  • Dimensions12″ L x 5″ W x 1.75″ H (12.5″ L Including brackets)
  • Weight3.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage Shutoff90 VAC ± 6 VAC
  • Over-Voltage Shutoff144 VAC ± 8 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 KHz – 1 MHz
  • Signal Line Protection1 Tel
    2 Cable/Satellite
Shipping Info
  • Length14 (Inches)
  • Width9.4 (Inches)
  • Height2.4 (Inches)
  • Weight3.1 (Lbs)
  • Unit of MeasureEach
  • UPC050616008730
  • Master Pack Qty6

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
