Description
For Satellite, CATV, Cable / DSL Modems & Pay-Per-View Lines.

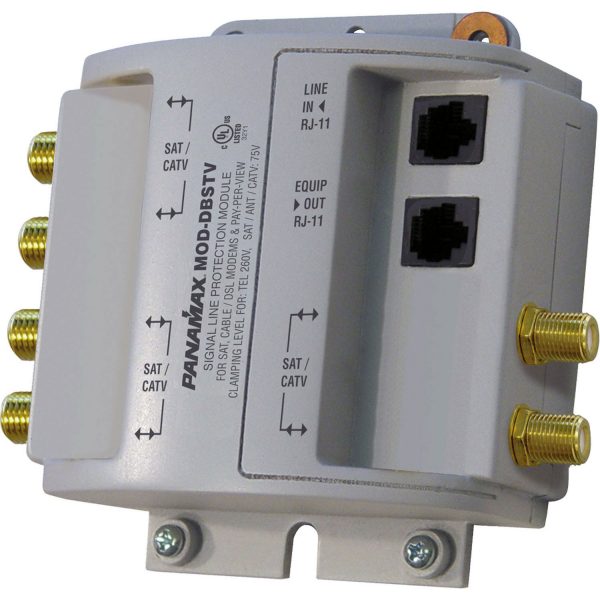

MOD-DBSTV
Module, 2 Sat, 1 CATV, 1 Tel
For Satellite, CATV, Cable / DSL Modems & Pay-Per-View Lines.
Features
Designed to protect 2 satellite lines, 1 cable TV or antenna line, and 1 telephone line.
Specifications
Telco Protection
Wires Protected: 1 Pair (Pins 4, 5)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors:
RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)
Cable and Satellite Protection
Shielded: Yes
Insertion Loss:
< 0.5 dB
Frequency Range: 0MHz – 2.2GHz
Clamping Level: 75V
Bi-Directional: Yes
Other Specifications
- General
- FamilySignal Protection Modules
- Line Voltage120 (Volts)
- Number of Outlets0
- ComplianceCAT5E
- USB ChargingN/A
- Low Voltage TriggerN/A
- AC Power CordN/A
- Weight.9 lbs
- AC Protection
- Initial Clamping Level260V Peak
- Filtration
- Filtration TechnologyN/A
- Signal Line Protection2 Sat or 1 Cable
1 Tel
- Shipping Info
- Length6.6 (Inches)
- Width2.2 (Inches)
- Height5.6 (Inches)
- Weight0.95 (Lbs)
- Unit of MeasureEach
- UPC050616007764
- Master Pack Qty24
Warranty
CONNECTED EQUIPMENT PROTECTION POLICY
These signal line protection modules do not provide a Connected Equipment Protection Policy. When properly installed with a compatible Panamax AC base unit, the base unit’s Connected Equipment Protection Policy remains valid.
LIFETIME LIMITED PRODUCT WARRANTY
Panamax warrants to the purchaser of this Panamax signal line protection module, that the unit shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.
WARRANTY LIMITATION FOR INTERNET PURCHASERS:
Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
