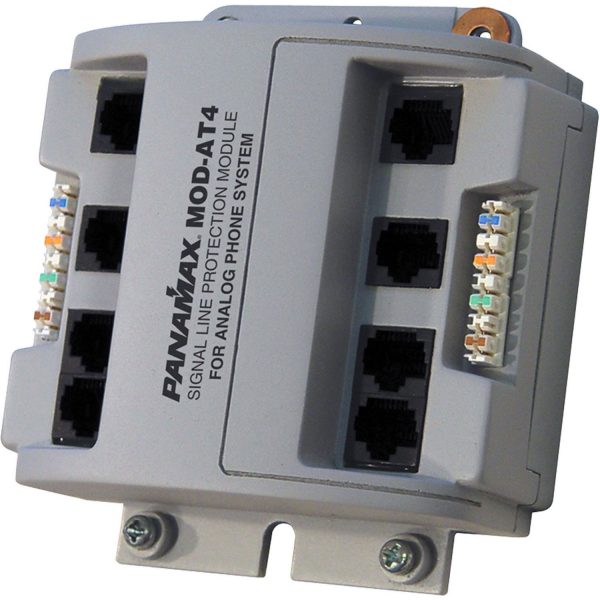

MOD-AT4

Module, Analog Tel, 4-Line

For Analog Phone System Protection – 4 Lines DSL Modem Compatible.

Description

For Analog Phone System Protection – 4 Lines DSL Modem Compatible

Features

  • Designed to protect standard phone lines and DSL (ADSL, G.Lite) lines.
  • Multiple input & output jacks provide complete installation flexibility.
  • Different cables/connections can be split or combined to accommodate a variety of installations.

Specifications

Mounting Hardware Included: Yes

Telco Protection
Wires Protected: 8
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-45, RJ-14, RJ-11 and S110D
Clamping Level: 260V
Capacitance: 30 pf (approx.)

Other Specifications

General
  • FamilySignal Protection Modules
  • Line Voltage120 (Volts)
  • Number of Outlets0
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Weight.7 lbs
AC Protection
  • Initial Clamping Level260V Peak
Filtration
  • Filtration TechnologyN/A
  • Signal Line Protection4 Tel
Shipping Info
  • Length5.6 (Inches)
  • Width2.2 (Inches)
  • Height4.5 (Inches)
  • Weight0.7 (Lbs)
  • Unit of MeasureEach
  • UPC050616007702
  • Master Pack Qty24

Warranty

CONNECTED EQUIPMENT PROTECTION POLICY

These signal line protection modules do not provide a Connected Equipment Protection Policy. When properly installed with a compatible Panamax AC base unit, the base unit’s Connected Equipment Protection Policy remains valid.

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax signal line protection module, that the unit shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
