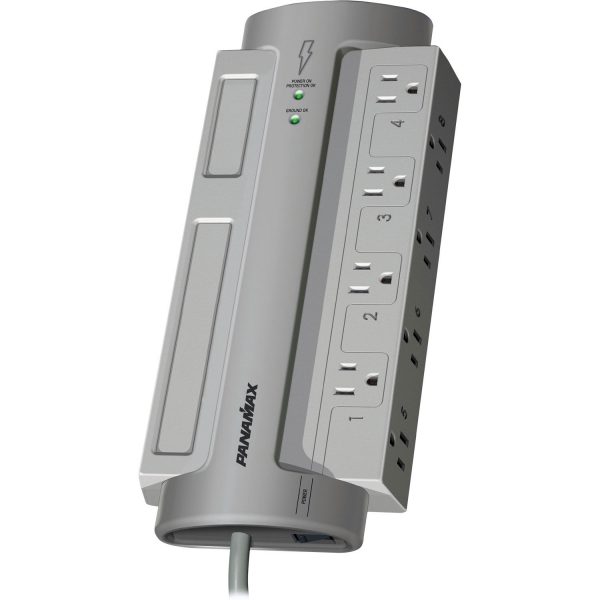

PM8-EX

PowerMax 8, AC ONLY

Provides Clean & Safe Power For All Home / Office Equipment.

Description

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion

Features

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1125 Joules
Response Time: < 1 ns
Peak Impulse Current: 52,000 Amps

Other Specifications

General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet DescriptionsAll 8 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • ComplianceUL 1449 3rd Edition, 3000A
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord6 ft. captive cord
  • Dimensions12" L x 5" W x 1.75" H (12.5" L Including brackets)
  • Weight3.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating45dB @ 100kHz – 1 MHz
  • Signal Line ProtectionNo
Shipping Info
  • Length8.5 (Inches)
  • Width2.2 (Inches)
  • Height12.5 (Inches)
  • Weight2.35 (Lbs)
  • Unit of MeasureEach
  • UPC050616007559
  • Master Pack Qty6

Warranty

$100,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
