C3-IP

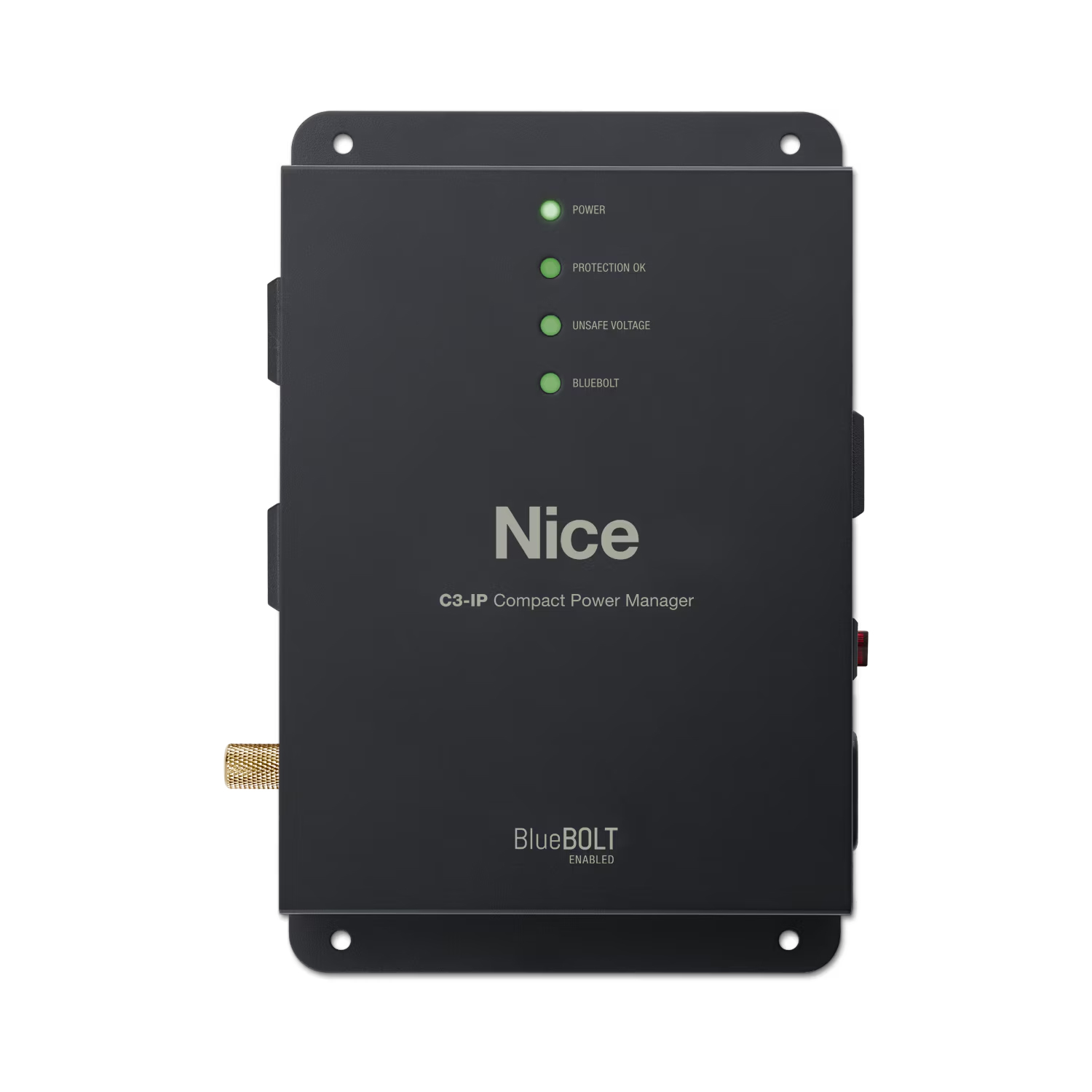

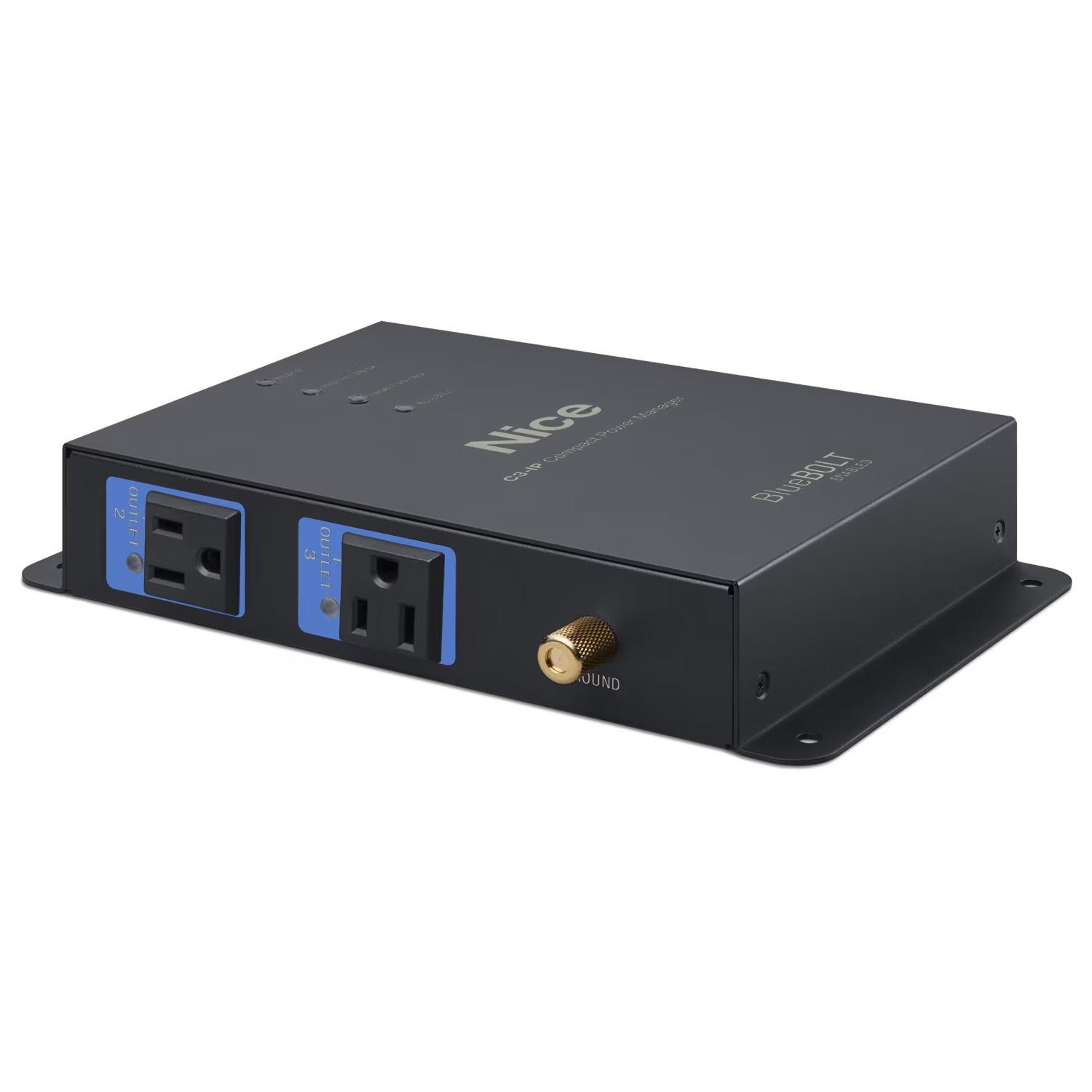

C3-IP Compact Power Manager

BlueBOLT enabled compact power conditioner and power sequencer

Description

Panamax® C3-IP, a BlueBOLT enabled compact power conditioner and power sequencer with individual control for three separate outlets. Remote power management via BlueBOLT’s cloud-enabled platform allows installers to monitor, control and program from anywhere. With a slim design, C3-IP fits the needs of virtually any discrete installation such as behind a flat screen, in a structured wiring enclosure or mounted to the back of a rack. Automatic over/under voltage protection through Panamax technology ensures fewer service calls and maximum longevity of connected equipment.

Features

  • Compact Bluebolt™ Enabled Power Manager
  • 3 Individually Controlled Outlets
  • Protect-or-disconnect Surge Protection
  • Standard EMI/RFI Filtration
  • Over/Under Voltage Load Disconnect
  • Power Sequencing
  • 12A Capacity with circuit breaker
  • Integrated Brackets for Wall Mounting

Specifications

AC Power: 120Vac 50/60Hz
Total Outlets: 3
Operating Control: Type 1
Total Current Capacity: 12A Maximum
Rated Impulse Voltage: 1500V
Voltage Protection Rating (UL1449): L-N 500V
Initial Clamping Level: 200V Peak, 141 Vrms
Energy Dissipation: 1680 Joules
Peak Impulse Current: 12,000
Protect-or-Disconnect: Yes
Over-Voltage Load Disconnect: 140 Vac
Under-Voltage Load Disconnect: 90 Vac
Filtration Technology: Standard RFI/EMI Filtration
Filtration Rating: 10dB @ 10kHz, 17dB @ 30kHz, 33dB @ 100kHz, 55dB @ 1MHz
Thermal Fusing: Yes
Cord Length: 0.5M IEC cord
Dimensions (LxWxH): 7.35″ x 5.5″ x 1.58″
Weight: 2.6lbs

Environmental Specifications

Temperature: 0˚ C -+40˚ C (+32˚F- +104˚F)
Operating Humidity: 0-90% non-condensing
External Pollution Degree: Pollution Degree 2
