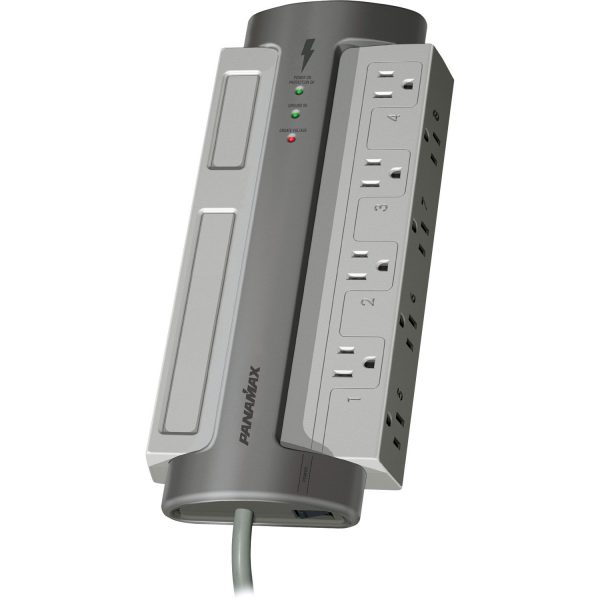

M8-EX

MAX 8 AC Only

The M8-EX provides clean and safe power for all home/office equipment

Description

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accomodate System Expansion

Features

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accomodate System Expansion

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes

Other Specifications

General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet DescriptionsAll 8 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord8 ft. captive cord
  • Dimensions12" L x 5" W x 1.75" H (12.5" L Including brackets)
  • Weight3.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage Shutoff90 VAC ± 6 VAC
  • Over-Voltage Shutoff144 VAC ± 8 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 KHz – 1 MHz
  • Signal Line ProtectionNo
Shipping Info
  • Length13 (Inches)
  • Width10 (Inches)
  • Height2.2 (Inches)
  • Weight2.9 (Lbs)
  • Unit of MeasureEach
  • UPC050616007498
  • Master Pack Qty6

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer. Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
